Custom Metal Bushing Sleeve For Automatic Liquid Filling Machine IATF16949 Certified

Product Categories
JESENTECH GROUP CORPORATION
Contact Now

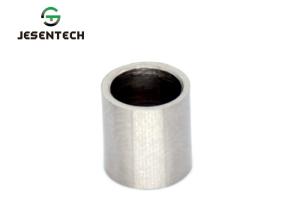

Custom Metal Bushing Sleeve For Automatic Liquid Filling Machine IATF16949 Certified

  • 1
  • 2
  • 3

Brand Name : JESENTECH

Model Number : Non Standard Customization

Certification : IATF 16949:2016

Place of Origin : Shenzhen CHINA

MOQ : 1-5 PIECES

Price : Negotiated price

Payment Terms : T/T, L/C, Western Union,Paypal etc.

Supply Ability : 3550000 pieces/Month

Delivery Time : 3-7 days

Packaging Details : General export packaging(PVC Bags+Shockproof cushion+Carton Box+Wood pallet)

Application : Automatic machine

Material : Stainless Steel/Carbon Steel or as you request

Finishing : Customer customization

Standard : IATF16949:2016

Size : as your request

MOQ : 1 Piece

Lead Time : 3-7 days

Contact Now

Small MOQ and IATF16949 passed metal Bushing sleeve for Automatic liquid filling machine

Material of bushing

The material of the liner is soft metal, rubber, nylon and non-metal polymers, which are relatively soft and low in price. In all kinds of bad working conditions, the bush is subjected to vibration, friction and corrosion to protect the wrapped parts, and the lining itself is convenient, low cost and good economy after the damage.

selection factor of bushing

The range of the liner is large and the variety is much larger, and the suitable liner must be selected, and the purpose of the liner must be considered, and different conditions will be chosen for different models. The main consideration of the liner selection is the pressure, speed, pressure velocity and load properties of the liner. In addition, the condition of lubrication and lubrication of the liner is determined by its use and life.

Type Material Surface finish Hardness
D size m6 D size p6
BAUFMJR BAUFPJR SUJ2 / 58~61HRC
BAUFMJRN BAUFPJRN SUJ2 Electroless nickel plating 58~61HRC

Custom Metal Bushing Sleeve For Automatic Liquid Filling Machine IATF16949 Certified

type D tolerance(m6) D tolerance(p6) P
designated unit is 0.01mm		 L
designated unit is 0.1mm		 Thickness(E) R
model D
7 +0.015
+0.006		 +0.024
+0.015		 3.51~5.00 5.0~8.0 1.00~1.74 0.5
8 4.51~6.00 5.0~13.0
9 4.51~6.50 1.25~2.24
10 6.51~8.00 5.0~20.0 1.00~1.74
<m6> 11 +0.018
+0.007		 +0.029
+0.018		 8.00~9.00 1.00~1.50
BAUFMJR 12 8.51~9.00 1.50~1.74
BAUFMJRN 13 8.51~10.00 1.50~2.24
14 9.00~11.00 1.50~2.50
<p6> 15 10.51~12.00 5.0~40.0 1.50~2.24
BAUFPJR 17 10.51~13.00 2.00~3.24 1.0
BAUFPJRN 18 12.51~14.00 2.00~2.74
20 +0.021
+0.008		 +0.035
+0.022		 13.51~15.00 2.50~3.24
22 13.51~17.00 2.50~4.24
25 15.51~19.00 3.00~4.74
26 16.51~20.00
30 20.51~24.00 1.5
35 +0.025
+0.009		 +0.042
+0.026		 25.01~29.00 5.0~60.0 3.00~4.99

Protection: prevent the swelling of the casing when installed. On the machine that is in the outdoor operation or working environment, the surface and bolts should be coated with anti-rust oil and grease, which should be used for the better expansion form of anti-rust. The expansion is a new advanced mechanical foundation. It is a new type of non-bonding device that is widely used in the international system to realize the machine and shaft, and tighten the pressure and friction of the tolerance surface by tightening the 12.9 high strength screw

Custom Metal Bushing Sleeve For Automatic Liquid Filling Machine IATF16949 Certified
